Blinds in the glass, the sunshade materials could be metal, PVC blinds.

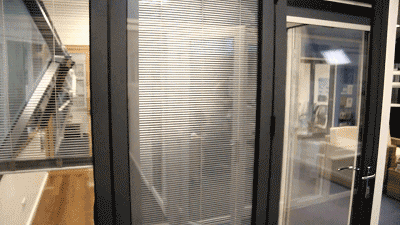

The aluminum blinds
The central part of the blinds in the glass could be manual, magnetic and electric, and the magnetic is more popular. Because of the manual is easy to appear the line broken and slats locking, and the electric is more expensive.

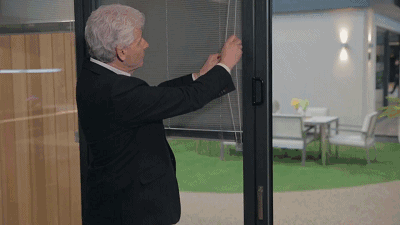

1.Pull on the rope control
The limited size of the manual blinds in the glass, less than 1220mm(Width)*2220mm(Height)

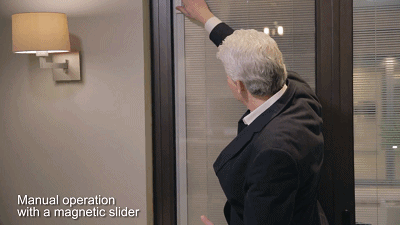

2.Magnetic control
This way could keep the middle air layer airtight, the whole assembly process should keep the air drying and filling the Inert gas between the blinds and glass.

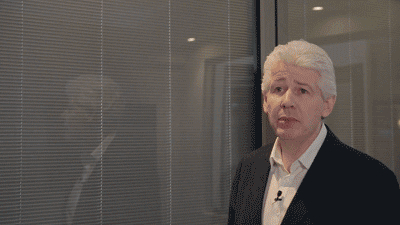

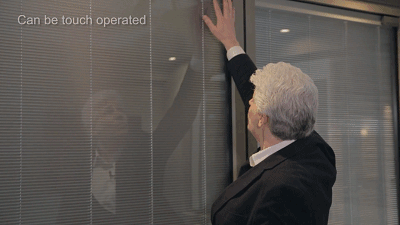

3.Electric control
By the motor driver to control the lifting and turning of the blinds. The air layer width should more than 27mm, to have enough space to fit the motor.
The electric control system, signal glass size could be 55 sqm max, then fit the motor size in accord with the weight of blinds.

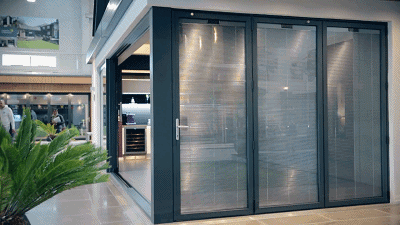

Building glass products all need good light transmission and visual field, so to use of horizontal louvers as shading products on the glass is undoubtedly an excellent choice to enable the horizontal line of sight without any shade.
Doors and Windows are important facilities for dividing the inside and outside of the building. The use of medium louvered Windows can effectively save space, at the same time, it has excellent shading and private functions and can achieve indoor constant temperature and noise reduction. The building facade can achieve a unified visual effect.
Along with the building design level unceasing enhancement, our country is more and more high to the building door window design request, needs to achieve the energy conservation, the artistic, the shading, the comfortable and so on, many areas have carried on the mandatory stipulation to the building door window shading facility.
Therefore, the use of aluminum blinds in the doors and windows, plastic hollow doors and blinds in the glass has become the first choice of many building shading facilities.
The advantages of the blinds in the glass:
1. Good shading performance
The middle shading louver insulating glass can reduce the shading coefficient SC to about 0.2, which is better than the shading coefficient of hollow Low-E glass (usually 0.35-0.45).

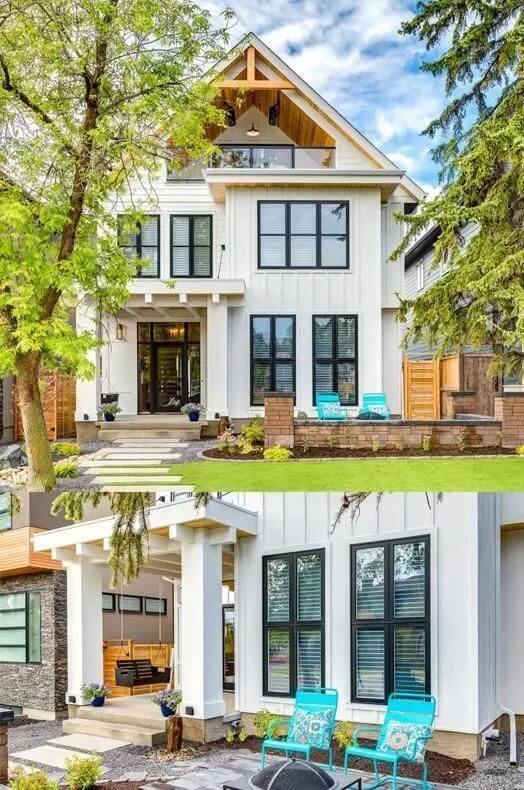

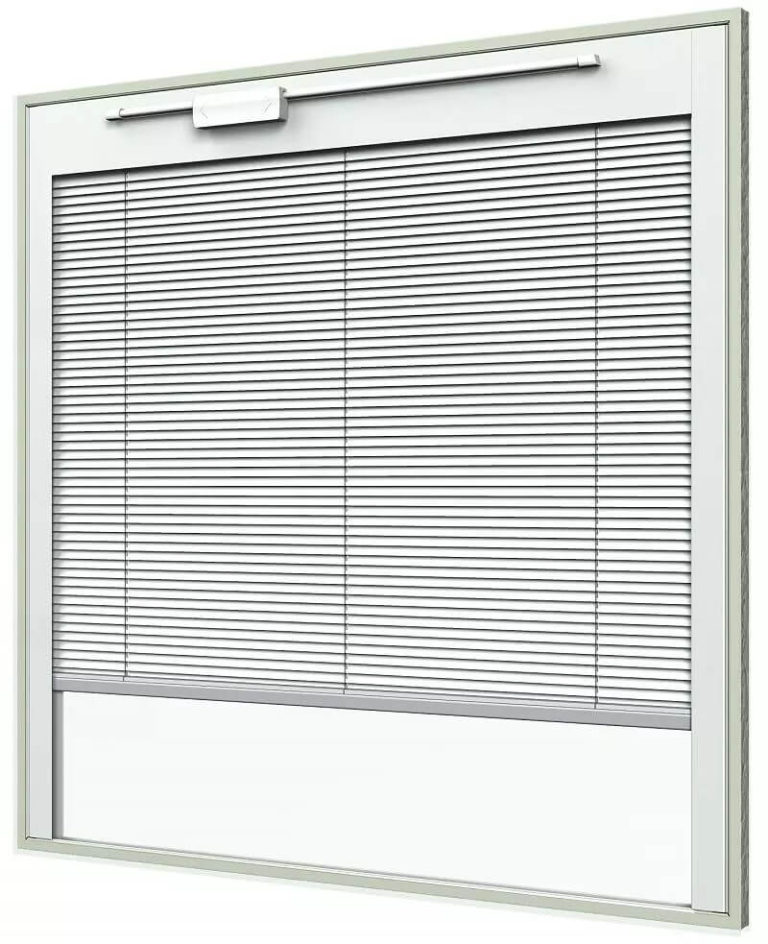

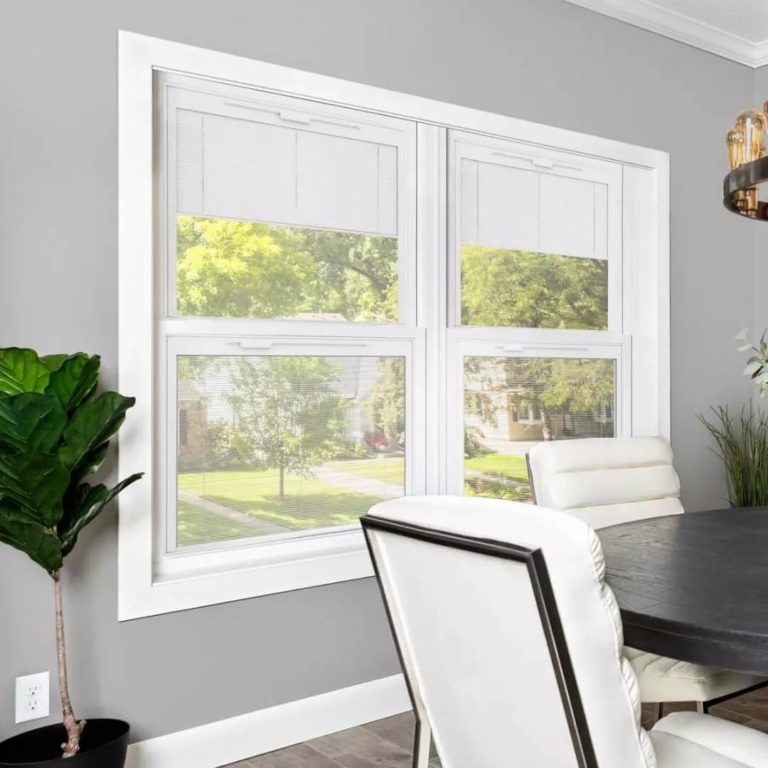

2.Energy conservation and environment protection
The middle louver is placed in the glass hollow clip cavity, because of the poor thermal conductivity of the air, sound transmission, can maintain the indoor temperature, placed in the room too hot or too cold, reduce the use of air control equipment power and frequency, but also has a good anti-noise function.

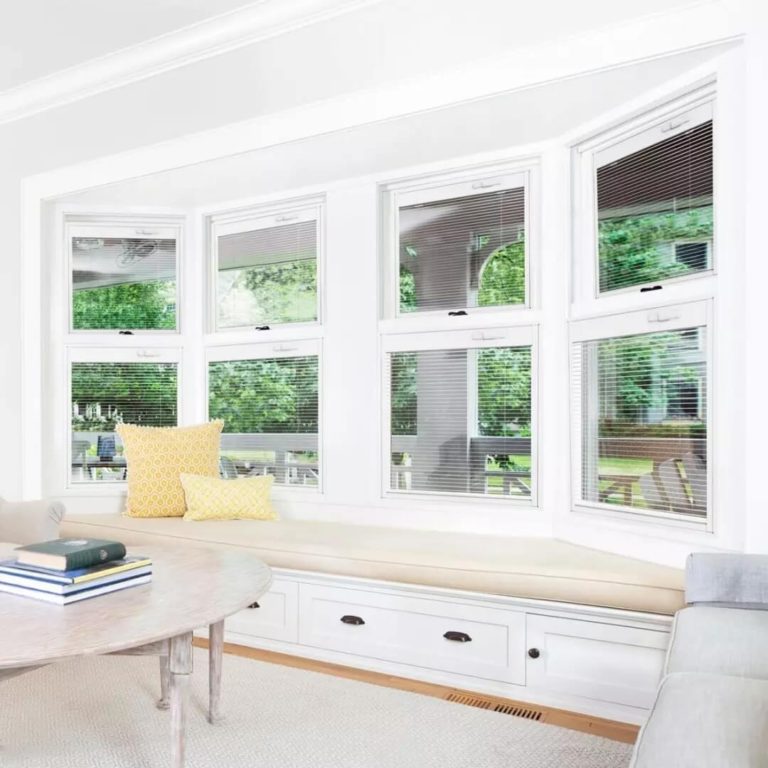

3.Save space
The biggest difference between the blinds in the glass and other shading products is that the shading facility is located in a closed and narrow space, which can be compatible with the glass window, and there is no need to add additional space required by the shading facility, which saves the limited indoor area.
4.Low maintenance charge
Some external shading facilities are prominent in the building facade, which not only affects the aesthetics of the building but also increases the construction cost and daily maintenance cost. In buy louver is sealed between two glass, because this need not worry about the sanitation problem of the louver, want to maintain the cleanness of glass only ok.

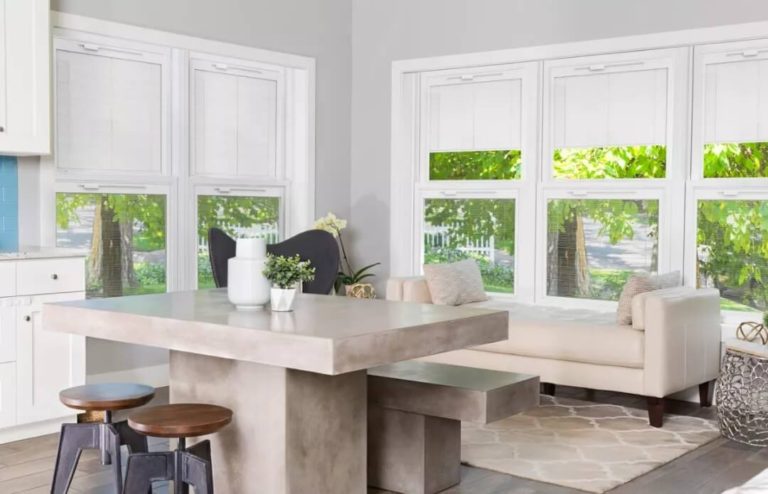

5.Adapt to different areas of shading needs
Different areas have different shading requirements. Northern areas should be mainly thermal insulation to ensure adequate sunshine and sunshine; The central region has higher requirements on heat preservation, insulation, lighting and ventilation. Southern areas emphasize better shading and natural ventilation to reduce room temperature.
The blinds in the glass of doors have the performance of dynamic energy saving, meet the different shading requirements under various climatic environments, but also a kind of beautiful, safe, low maintenance cost shading products.
6.High safety
Blinds in the glass are extremely good windproof, fireproof sunshade product, does not have pull rope, do not worry about children, pet to encounter danger because of operating pull rope, also need not worry about louver to be able to scratch them.
7.Various types of use
With the improvement of technology, its waterproof performance and anti-aging performance can be enhanced, the combination of the middle louver and the building facade glass Windows and glass doors greatly increases the specific form of use.

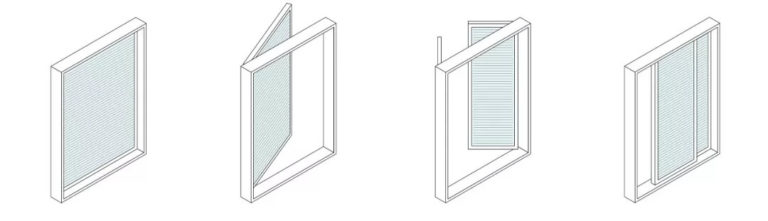

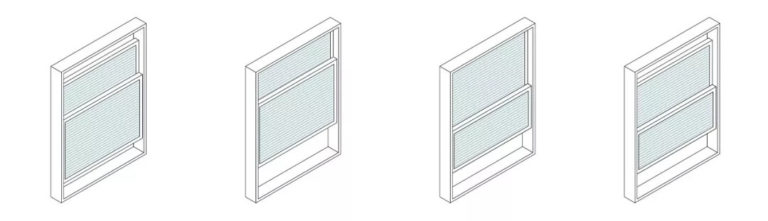

Type of blinds in the glass

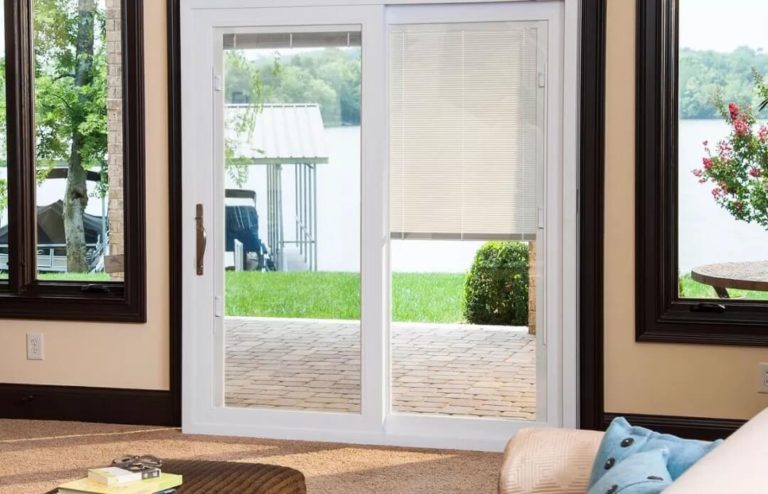

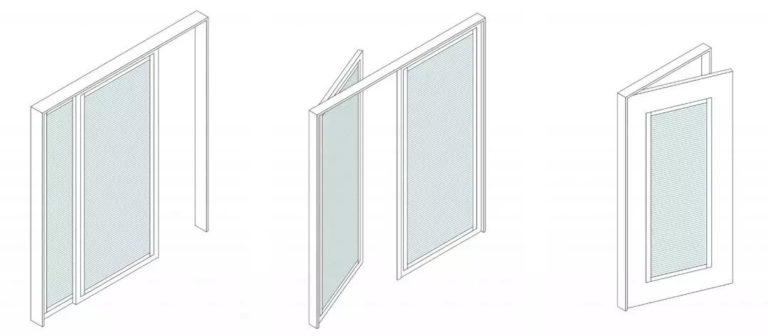

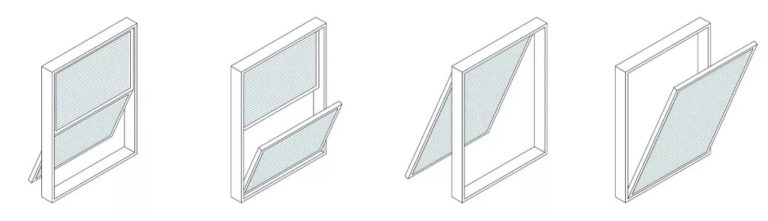

Type of blinds in the glass of doors

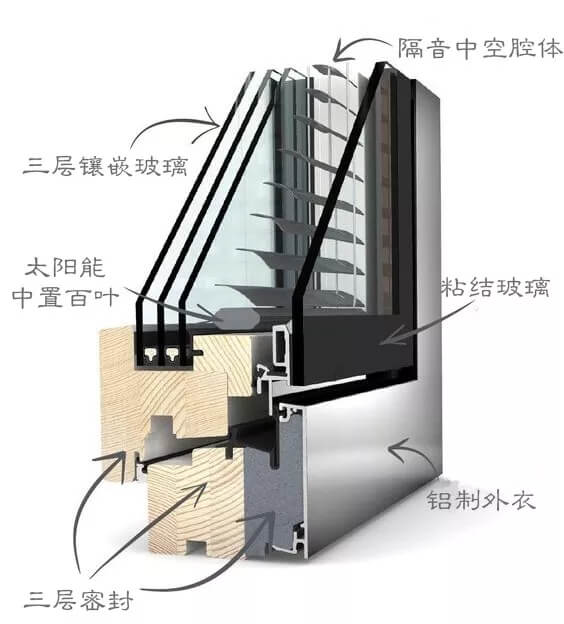

The blinds in the glass are the crystallization of traditional shading products and new technologies. It has the comprehensive functions of insulating glass and louver, including shading, heat preservation, sound insulation, daylighting regulation, fire prevention, cold resistance, privacy, space saving, and easy cleaning.
